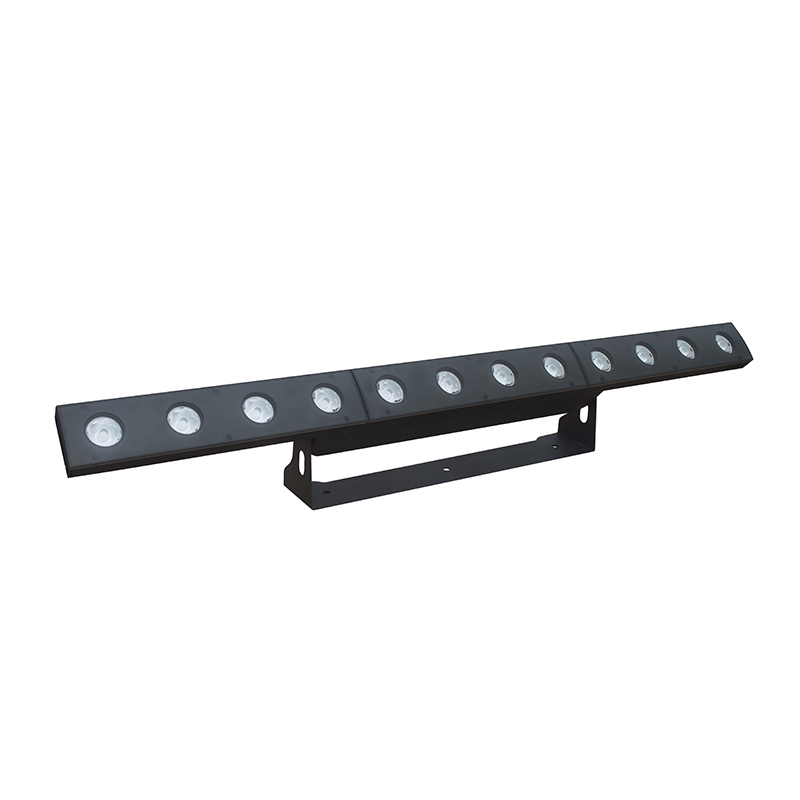

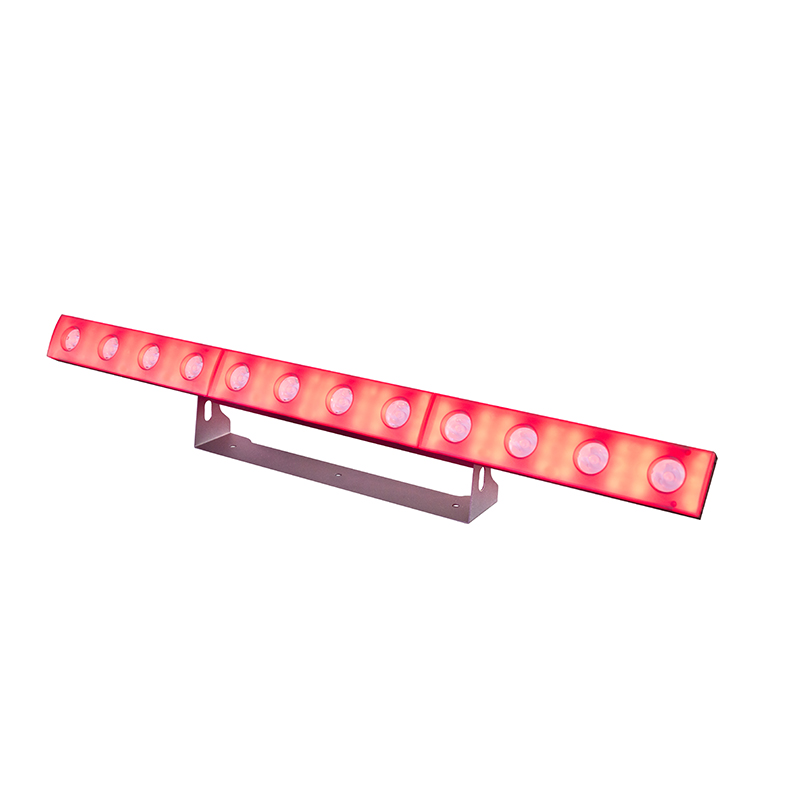

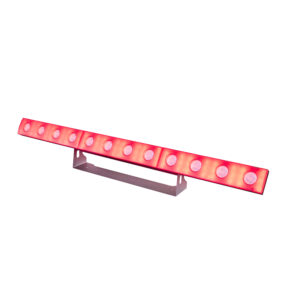

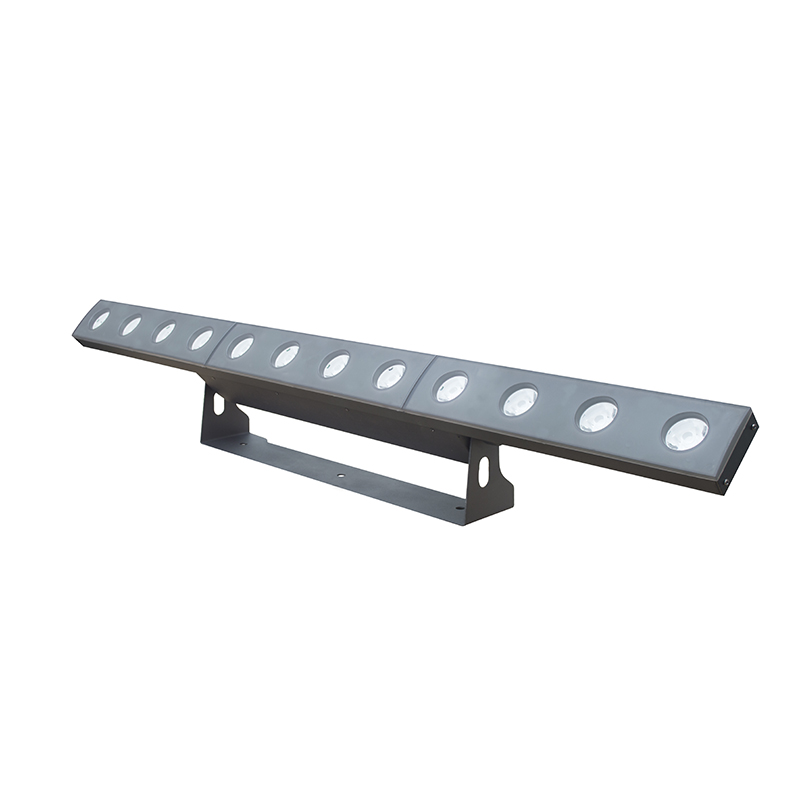

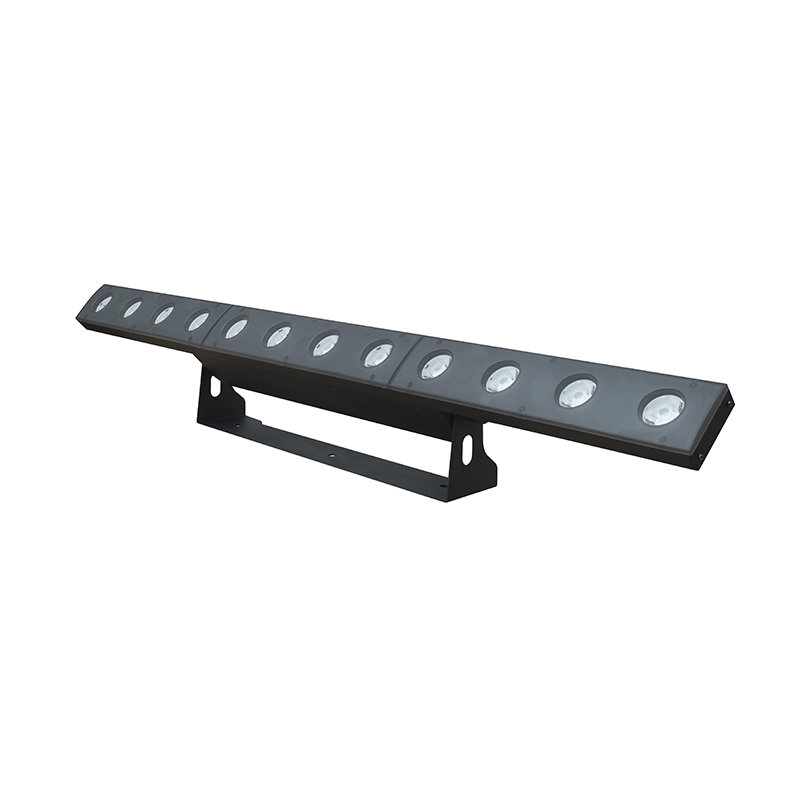

XCY-571E 12 light quick wash BAR

• Input voltage: AC90-230V, 60Hz/170VA
• Power consumption: 170W
• Light source: 12 super-bright 3W LEDs,

and 72pcs SMD 5050 3in1 RGB ,for highest

luminous efficiency

• Channel: 6/8/12/52 DMX CH
• Operating modes:DMX,music-controlled,

automatic and master/slave

• Music-controlled via integrated microphone
• Control panel with LED display for addressing and preadjustments

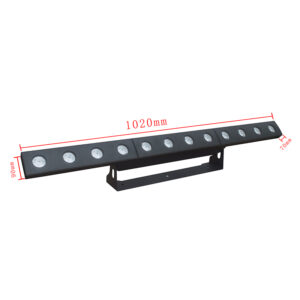

• Packing Size:(L*W*H) 1020*70*90mm
• Net weight: 3.5 kg
• Gross weight: 4 kg
• LED DMX light effect panel,3 primary colors

(red,freen and blue)plus white,With color

mixer and DMX control

• Control panel with LED display for DMX addressing and preadjustments
• processor-controlled color change and running light effects
• long life with low power consumption，Beam and Washer effect all can shows
• Can be freely arranged in combination to produce different dynamic effects, each

LED can be controlled individually

• Black lacquered aluminium housing with movable mounting brackets for wall

mounting and ceiling suspension
