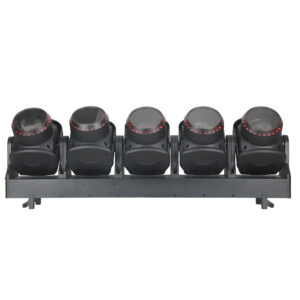

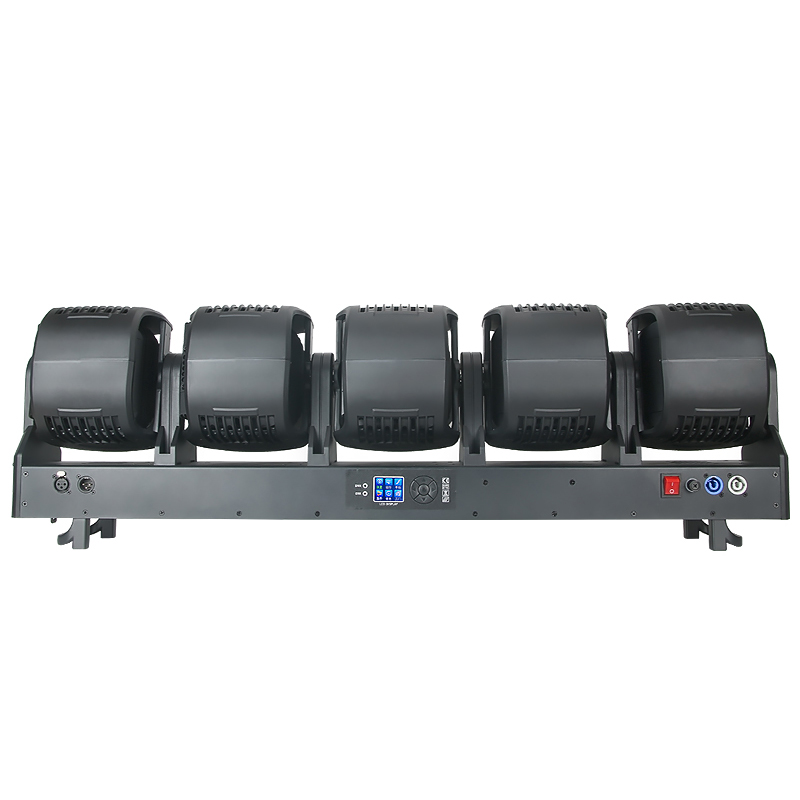

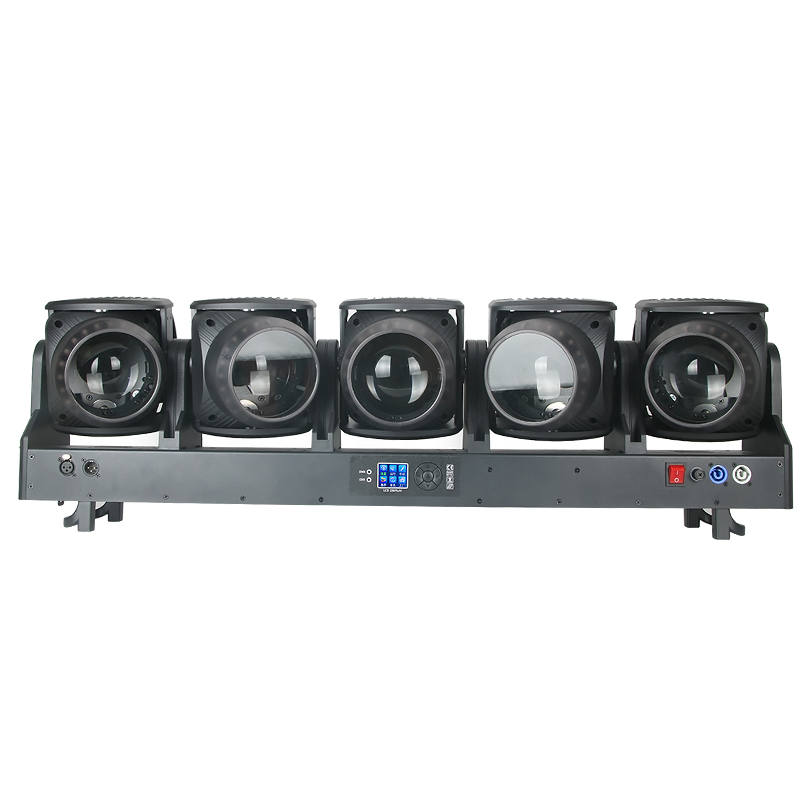

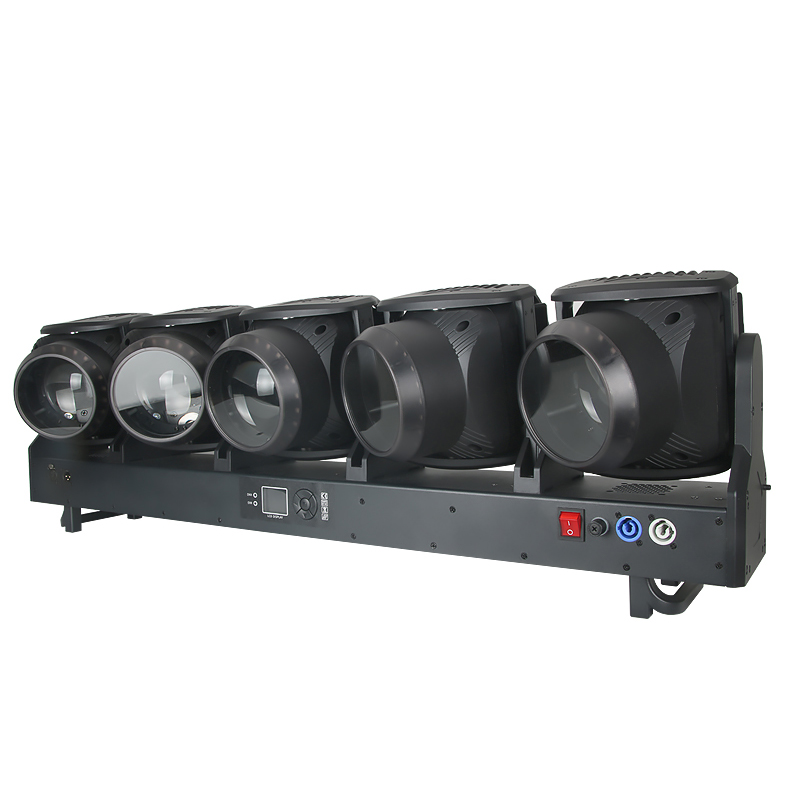

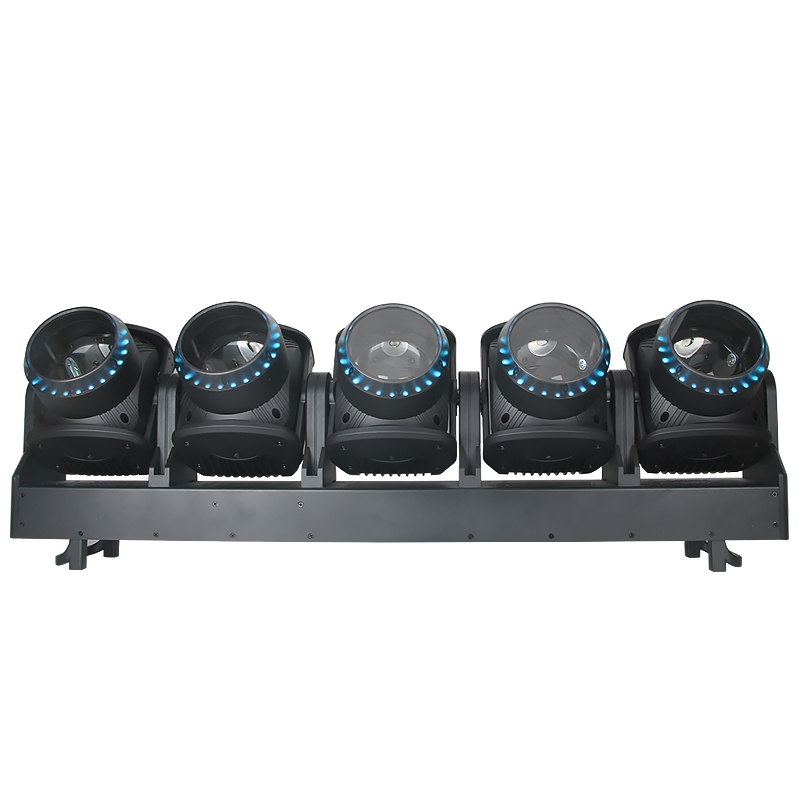

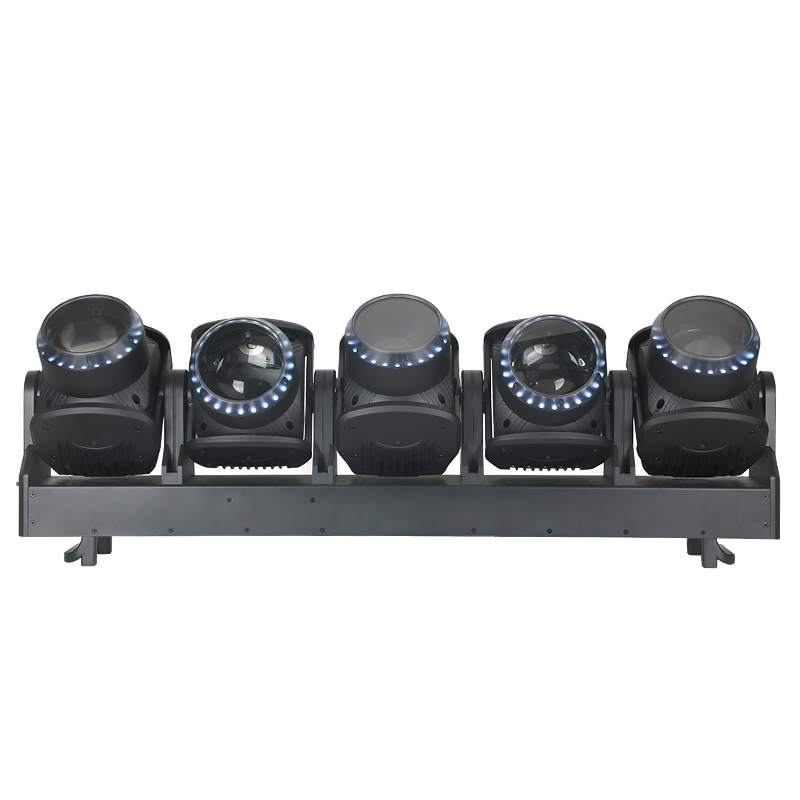

XCY-M426 5 Model B Tornado units

Voltage: AC 100–240 V, 50/60 Hz

Power: 800W

Lamp beads: 5 x 120W RGBL (1,212 lamp beads) + 120 x RGB auxiliary lighting

X-axis rotation angle: 59°

Y-axis rotation angle: 221°

Control methods: DMX512, self-walking, master-slave, sound control, with RDM functionality.

Channels: CH31, CH41, CH71

Focusing angle: 4–50°

Dimming: Linear CTO dimming from 2500K to 7500K

Operating temperature: -30°C to 50°C

Strobe frequency: 1 to 30 Hz

Appearance: Metal, black

Control panel: LCD display

Connection method: DMX512 input/output / power input/output.

IP rating: IP20

Net weight of the product: 23.5 kg

Dimensions: 1000 × 192 × 355 mm

Single-piece packaging: 108 × 43 × 26 cm

Features: Each lamp head features X- and Y-axis movement, color focusing, and beam control; the outer ring has 24 RGB auxiliary lights that can be controlled independently. The units can be connected horizontally.
