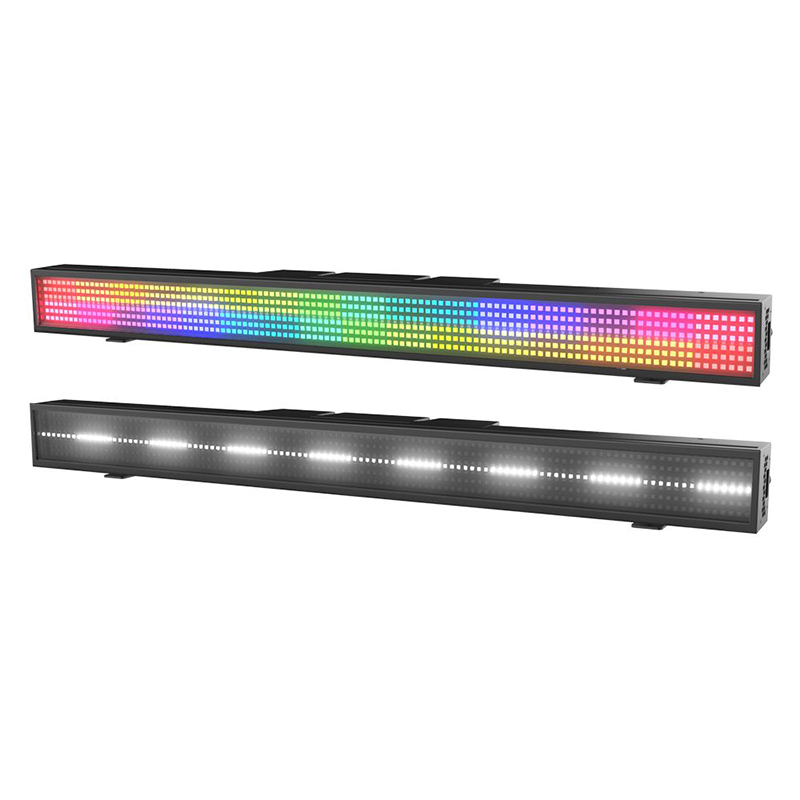

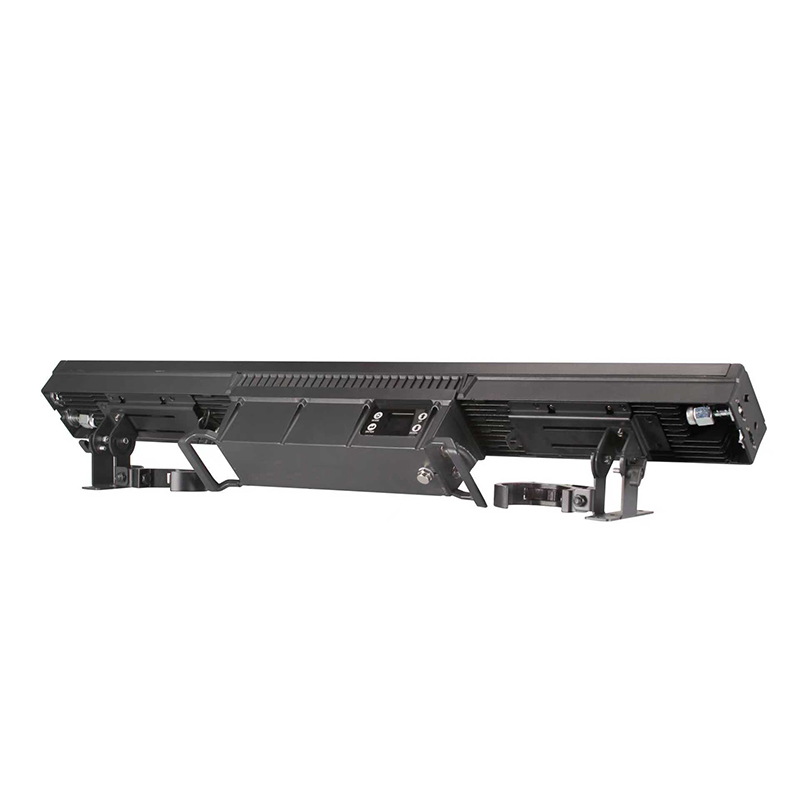

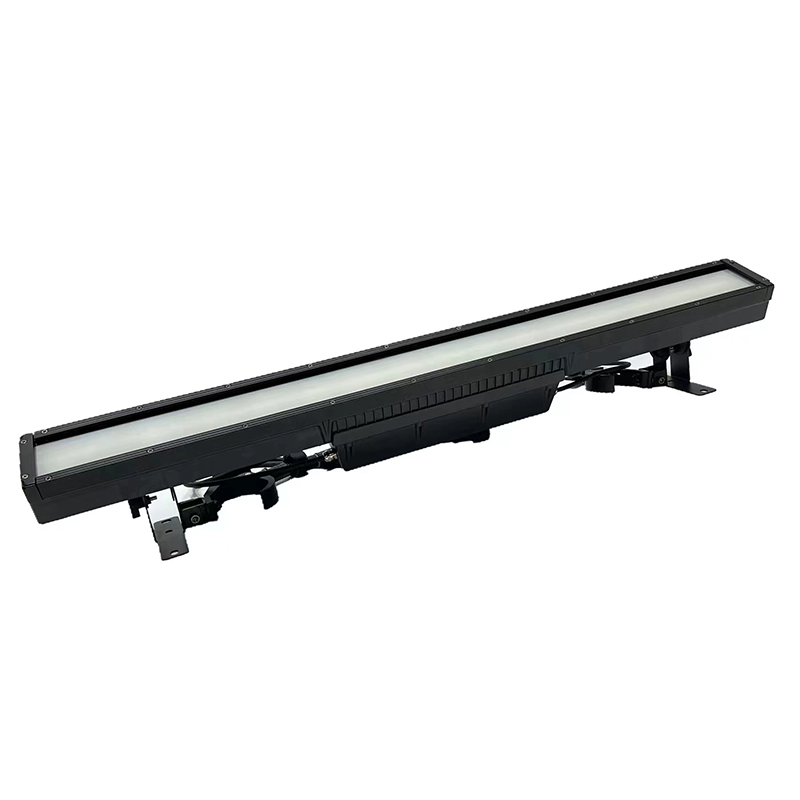

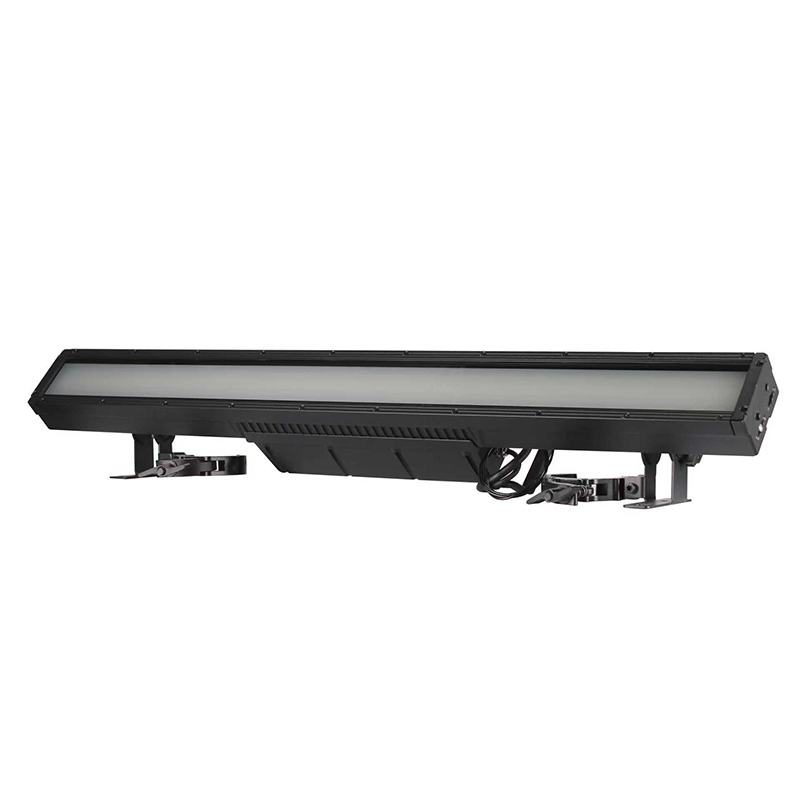

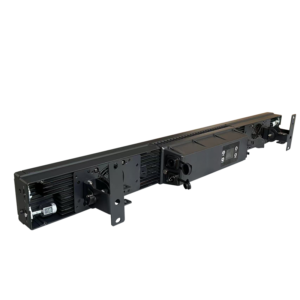

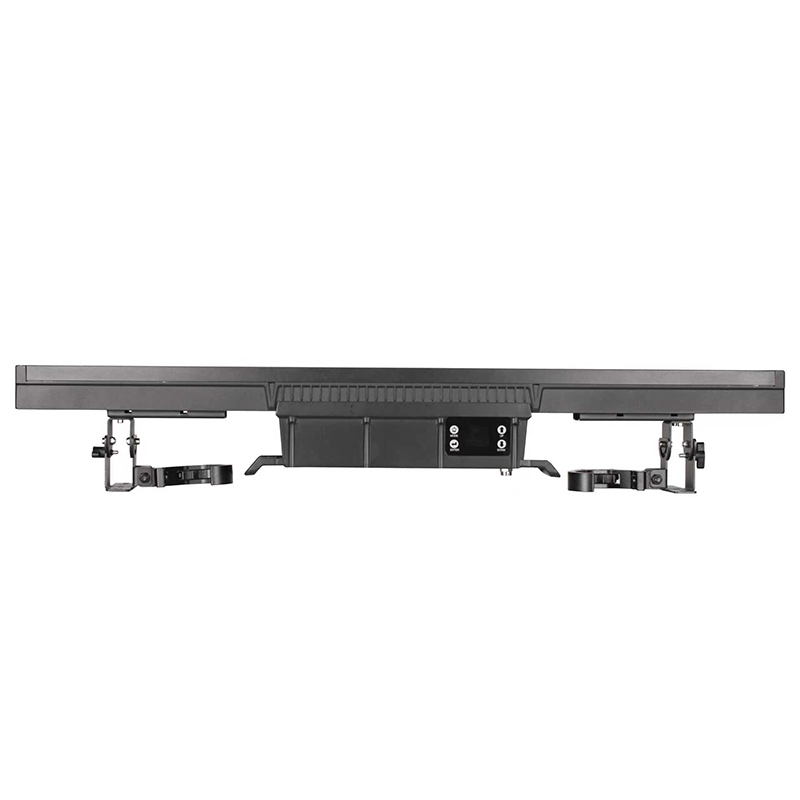

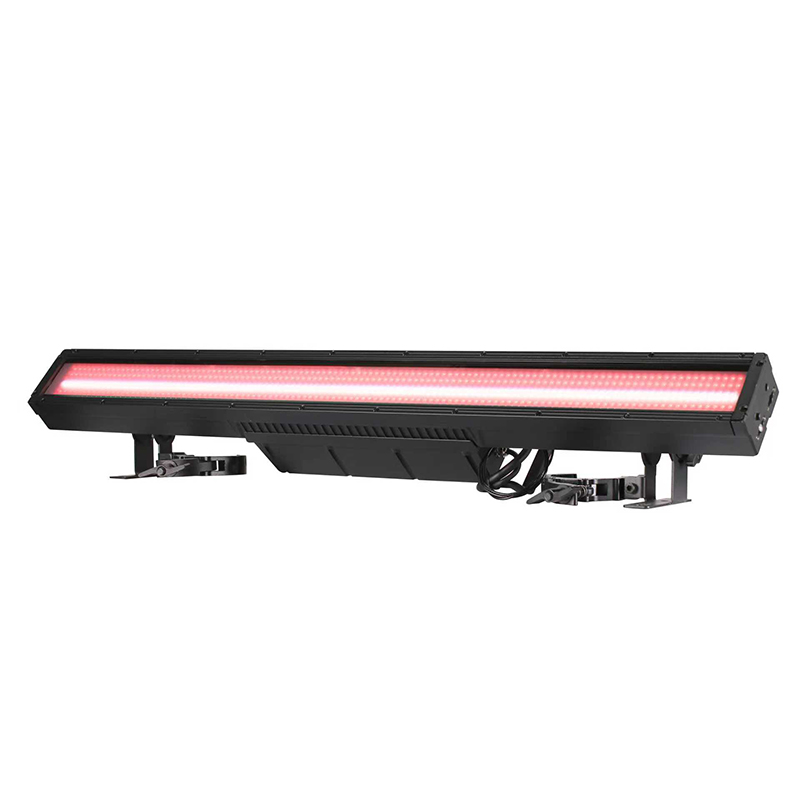

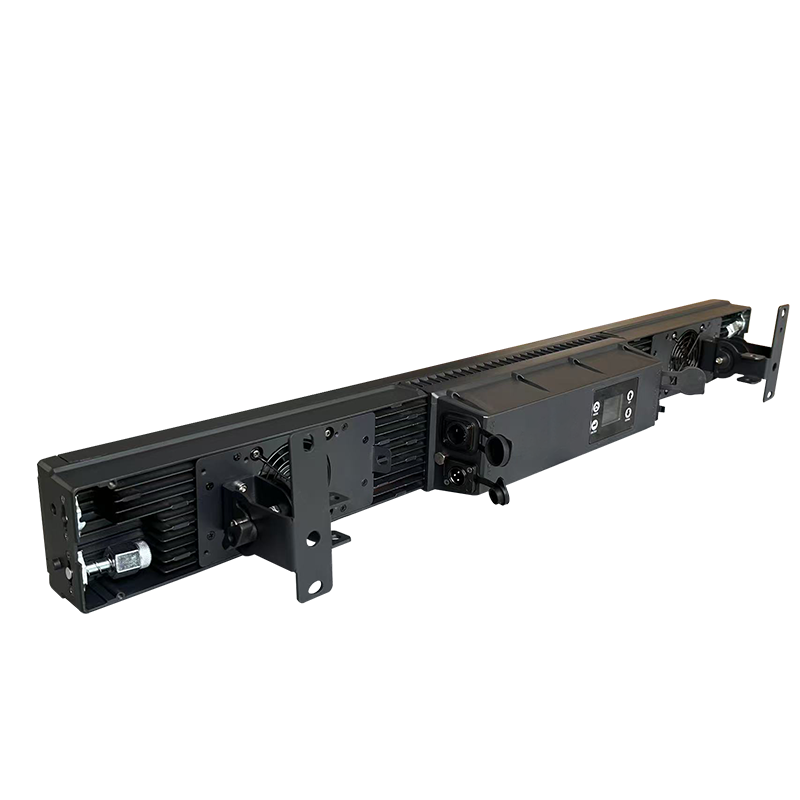

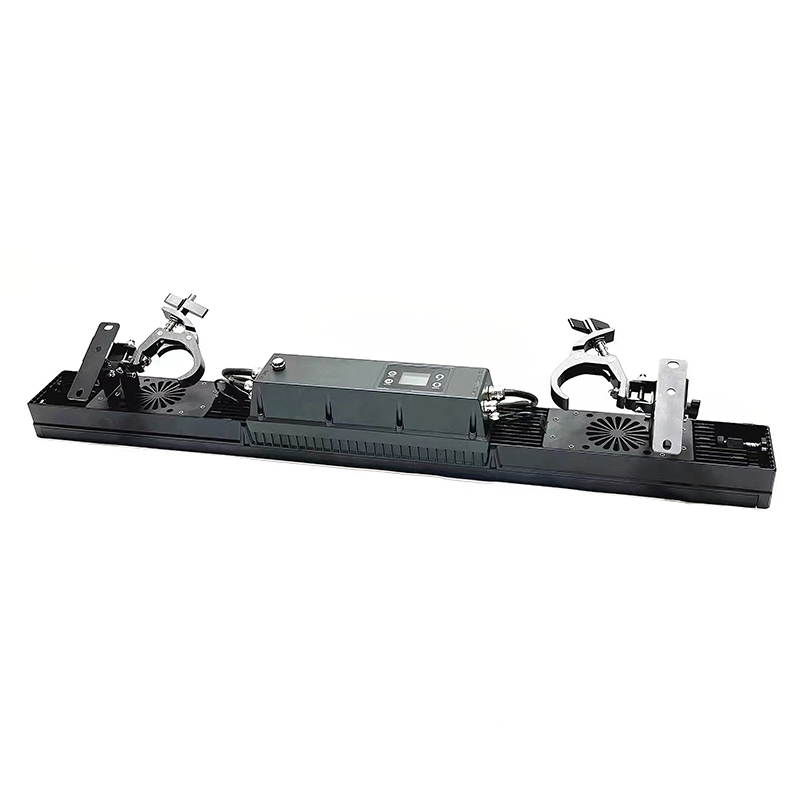

XCY-W550 LED Waterproof strobe pix line

Electrical and interface

Input voltage range: 180-240V to 50/60Hz

Power: 420 W

Power socket: Waterproof power connector input/output

Signal input/output: three/five core waterproof cannon socket,

Light source:

Color light: 672 x 0.5W RGB LED

White light: 112 x 3W CW LED

Beam Angle:

Color beam Angle: 101°

White light beam Angle: 108°

Spot Angle:

Color spot Angle: 149°

White light spot Angle: 152°

Control and program

4 touch keys

Control panel: OLED display

Control protocol: DMX512,RDM,Art-Net,sACN

DMX channel mode: 11

The control channel: 7/15/21/39/112/17/33/65/68/117/70

Software upgrade: Update software via DMX connection

Luminaire specification

Length: 1,000*124*90MM

Net weight: 8.5kg

Carton specification

Size: 1085*195*320MM

Weight: 10.5kg

Working environment

Maximum ambient temperature: 40°C

Minimum operating temperature: -10°C

Maximum surface temperature: 65°C

Protection level: IP66
